Overview Tool Path Optimization NX
In this TechTip, you’ll discover Tool Path Optimization how to optimize tool paths using the “Cut Area” method in Siemens NX 2306. Utilizing the Cut Area feature allows for enhanced control over tool paths, eliminating the necessity to create additional geometry to guide the tool.
For a more detailed walkthrough, please refer to the accompanying YouTube video. If you have any inquiries or need assistance. Please visit to login page here https://appv2.myigetit.com/auth/login. If you have active subscribtion of mygetit Tech Tip, Please reach out to https://app.myigetit.com/TechTips.
(Kindly ensure that you accept all cookies on the website hosting the video for a seamless viewing experience)
Step 1

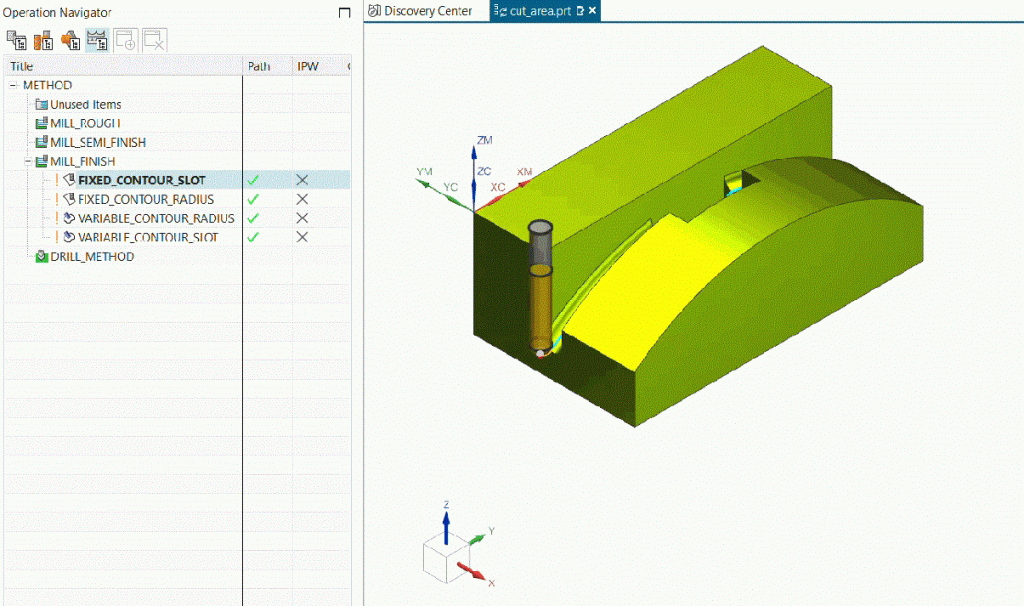

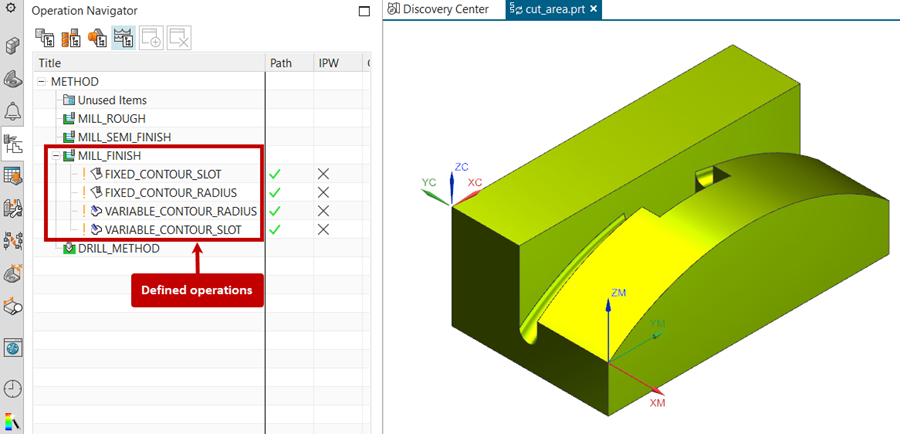

Open the part file cut_area.prt. This part already has several operations defined in Tool Path Optimization.
Step 2
Edit the operation Fixed Contour Slot and generate the operation Tool Path Optimization NX.

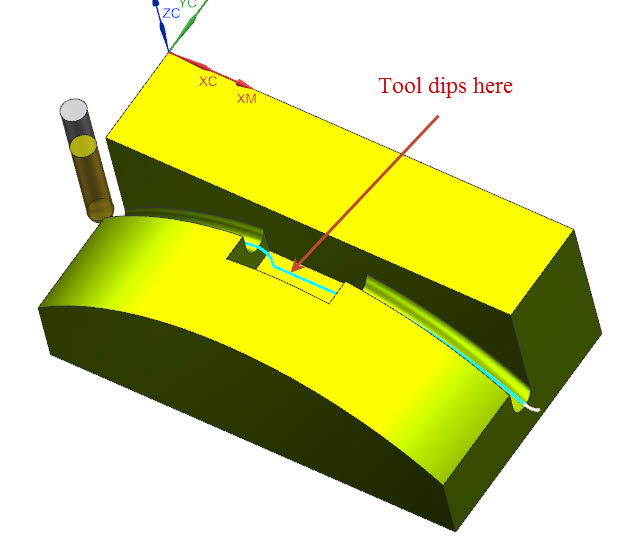

Notice that the tool dips into the pocket and while this does not harm anything, other than this may break the tool and thus this is not the desired tool path.
Step 3

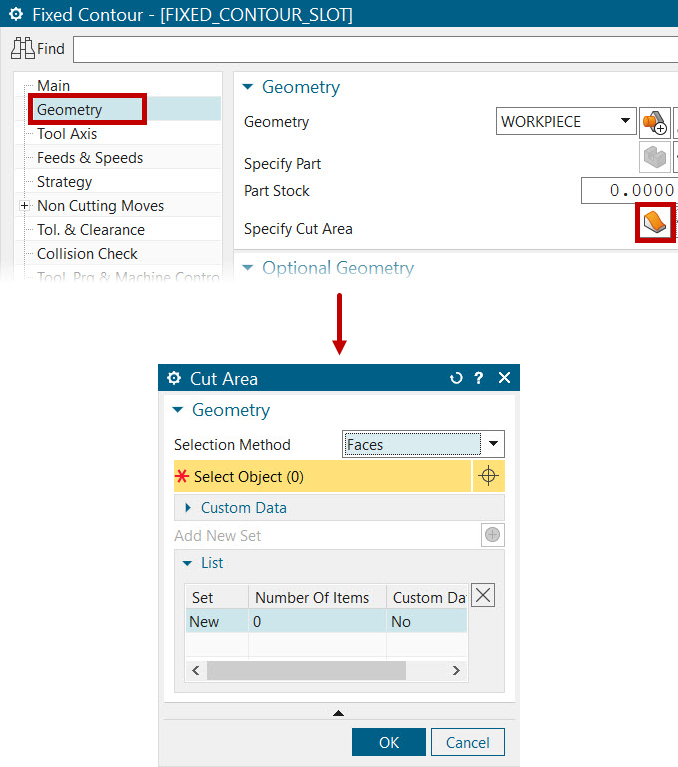

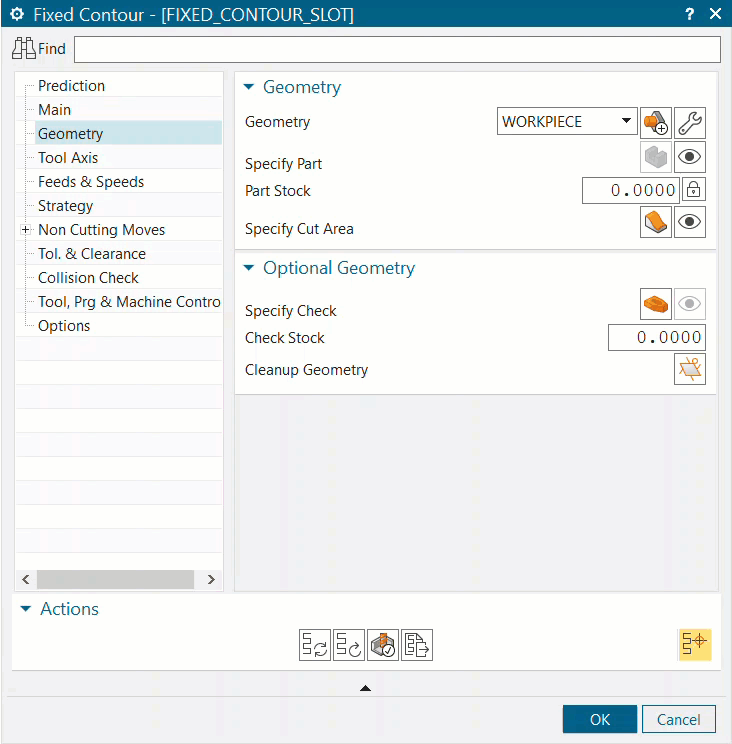

In the Fixed Contour Slot operation dialog, in the geometry tab, Click on Specify Cut Area option to display the Cut Area Dialog.
Step 4

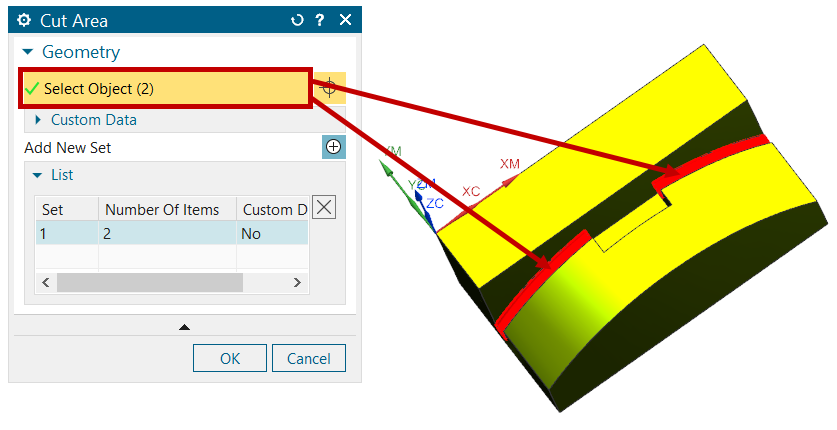

Select the two bottom faces of the groove to be the Cut Area and click OK in Cut Area Window.
Step 5

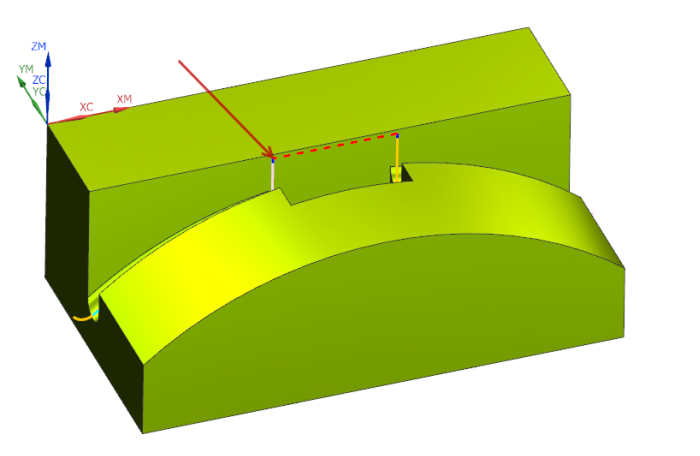

Generate the operation and notice that the cutter does not drop into the cutout. However, the cutter does retract where it is not necessary and this should get fixed.
Step 6

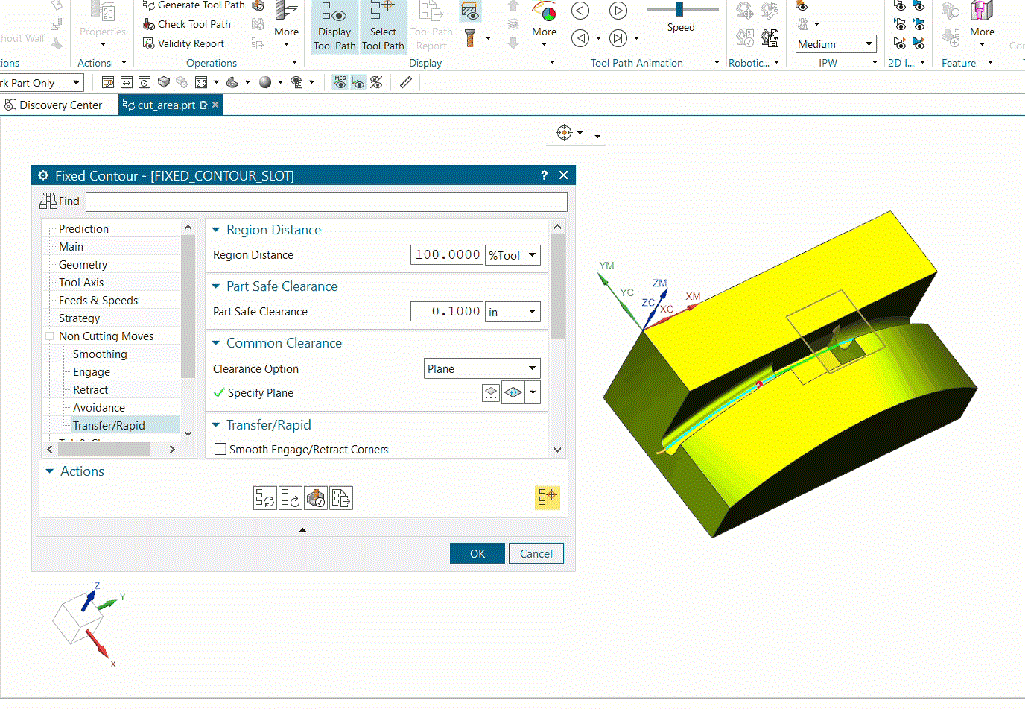

Expand the Non-Cutting Moves tab and in the Transfer or Rapid tab, expand the Between Regions group.
Then expand the Traverse group and here, change the Traverse Type to Direct and again generate the operation Tool Path Optimization NX.
Step 7

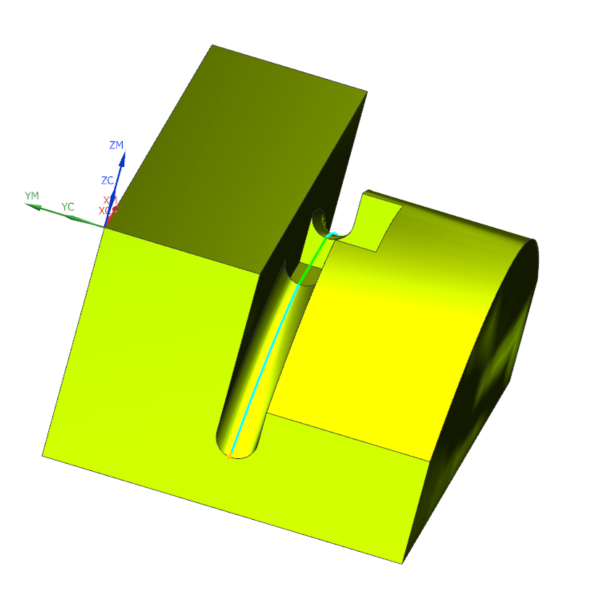

Now see that the cutter stays in feed mode and moves in a direct path to the next face, which is the required tool path.
Step 8
Verify the operation by specifying the Blank Geometry as shown
